Ekonomik ve Kompakt

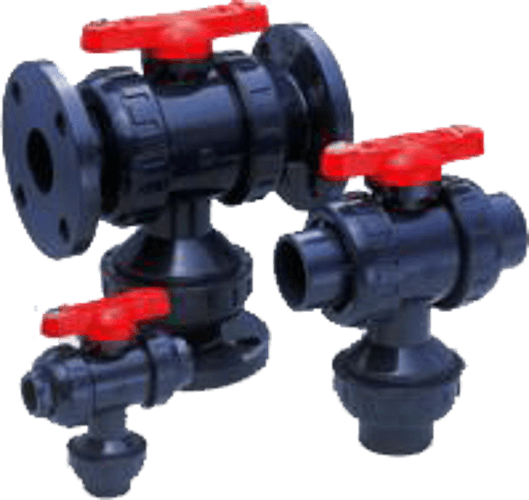

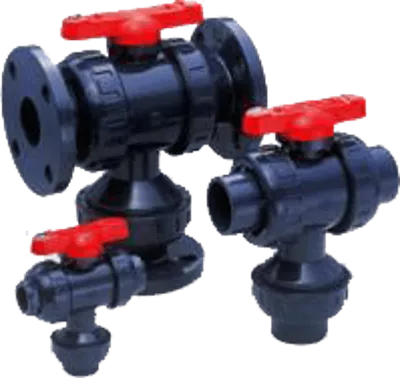

3-YOLLU KÜRESEL VANA, bir valf kullanarak iki akış profiline izin verir. Vana, iki küresel vana ve bir tee gerektiren bir boru hattı için uygundur. Yani, 3-YOLLU KÜRESEL VANA, ekonomiktir çünkü borulamayı kompakt hale getirir ve yerden tasarruf sağlar.



Reversible Flow Direction

The 3-WAY BALL VALVE is based on the Asahi true union ball valve design which can be installed or removed only by tightening or loosening its union nut.

Newly Equipped ISO Mounting Flange

This new feature provides for easier mounting of actuators on valves.

Interchangeable with Ball Valve Type21

The face to face dimensions, as well as the connecting parts, end connectors and union nuts, are the same as the ball valve Type21.

Other Special Features

Double O-ring seal on stem for an added protection. W-L port ball and *Cross port ball are available upon request. Note: Cross port ball is available at the size of 15mm (1/2inch) up to 50mm (2inch). Built-in spanner wrench on the handle for valve disassembly and assembly.
