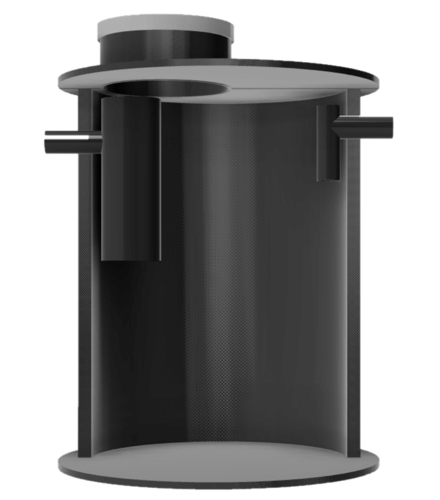

Grease Separators - EN 1825
Oil Separators

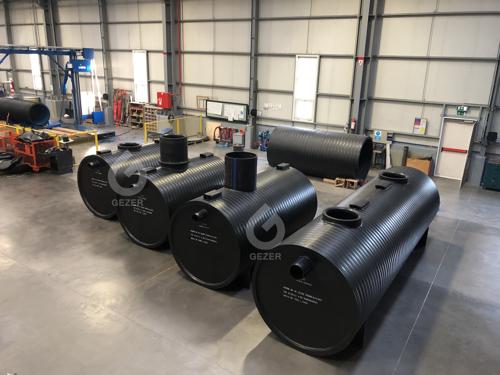

Products designed for wastewater systems are manufactured from spirally wound high density polyethylene (HDPE) material in accordance with EN 1825-1 and are TSE certified. It has a structure suitable for underground installation and retains floating and settling materials. If desired, it can be connected to vidanjor suction with DN 80/PN 10 flange or Storz B 75 coupling without opening the cover for odorless discharge. If it will be used under a 40-ton cover with D400 load class in accordance with EN 124 norm, a reinforced concrete plate must be used. The “HYA” Unit has a smooth surface that is resistant to oil and acids on the inside and outside, and does not contain residue on its inner wall. Optionally, there is an oil level meter alarm device and a sampling shaft after the product.
Advantages
Body made of High Density Polyethylene (PEHD) Body suitable for the place of use, strength calculated according to ATV-127 Easy to apply and economical Easy maintenance, corrosion resistant 100% leak proof Extremely long life, lightweight Environmentalist
Anma Büyüklüğü (NS) | Giriş/Çıkış Çapı DN (mm) | ID (mm) | OD (mm) | YağToplama Hacmi (litre) | Çamur Tutma Hacmi (litre) | A (mm) | B (mm) | Sipariş Kodu |
---|---|---|---|---|---|---|---|---|
1 | 110 | 1200 | 120 | 120 | 100 | 515 | 855 | 1.825.001 |
1 | 110 | 1200 | 120 | 120 | 200 | 515 | 980 | 1.825.011 |
2 | 110 | 1200 | 120 | 120 | 200 | 515 | 980 | 1.825.002 |
2 | 110 | 1200 | 120 | 120 | 400 | 505 | 1235 | 1.825.012 |
3 | 110 | 1200 | 120 | 120 | 300 | 510 | 1110 | 1.825.003 |
3 | 110 | 1200 | 120 | 120 | 600 | 505 | 1490 | 1.825.013 |
4 | 110 | 1200 | 160 | 160 | 400 | 505 | 1235 | 1.825.004 |
4 | 110 | 1200 | 160 | 160 | 800 | 505 | 1745 | 1.825.014 |
7 | 160 | 1500 | 400 | 400 | 700 | 595 | 1175 | 1.825.007 |
7 | 160 | 1500 | 400 | 400 | 1400 | 595 | 1575 | 1.825.017 |
10 | 160 | 1500 | 400 | 400 | 1000 | 628 | 1342 | 1.825.010 |
10 | 160 | 1500 | 400 | 400 | 2000 | 611 | 1909 | 1.825.110 |
15 | 200 | 2000 | 600 | 1140 | 1500 | 670 | 1400 | 1.825.015 |
15 | 200 | 2000 | 600 | 1140 | 3000 | 720 | 1810 | 1.825.115 |
20 | 200 | 2000 | 800 | 1140 | 2000 | 670 | 1550 | 1.825.020 |
20 | 200 | 2000 | 800 | 1140 | 4000 | 790 | 2080 | 1.825.120 |
